- HT225 Concrete Test Hammer

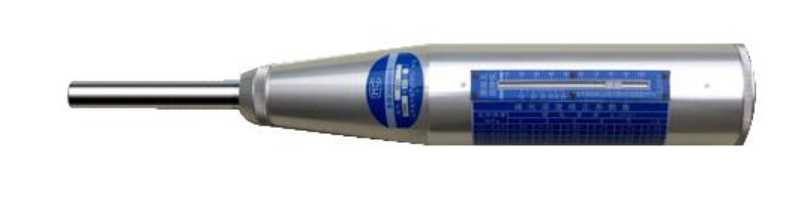

HT225 Concrete Test Hammer
1. Product description :
Concrete Test Hammer automatically Record, Save, Calculate and Processing data.
2. Application:
u Rebound method for testing compressive strength of concrete;
u Concrete uniformity testing;
u Normal concrete strength estimation;
u Uniformity testing of concrete;
u Screening of concrete to identify coring locations.
3. Applicable standards:
China :JGJ-T23
USA: ASTM C805,ACI228.1R
Europe:EN12504-2,EN13791
Russia: GOST 22690-2015
Japan:JCSE-G504
ISO 1920-7
JIS A1155
4.Main Specification:
Schmidt Hammer | |
Standard impact energy | 2.207J |
Rigidity of tension spring | 7.85N/m |
error range for digital displayer | ≤±1(the difference between displayer and scale) |
Average rebound hammer on steel anvil Rm | 80±2 |
Size(mm) | ?60×280 |
Weight(kg) | 0.1kg |
