ZD410 Integral Floor Thickness Gauge
  • ZD410 Integral Floor Thickness Gauge

ZD410 Integral Floor Thickness Gauge



a)Top view

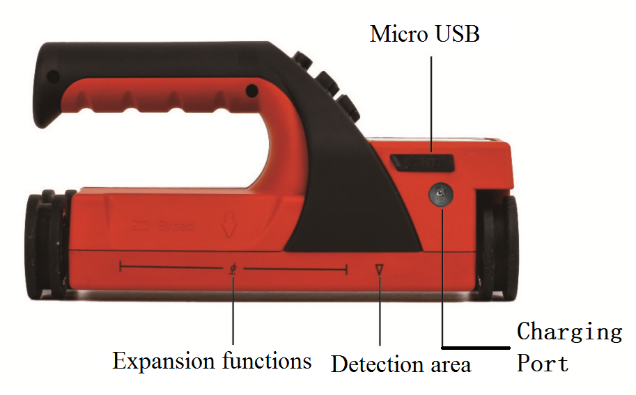

b)Left view

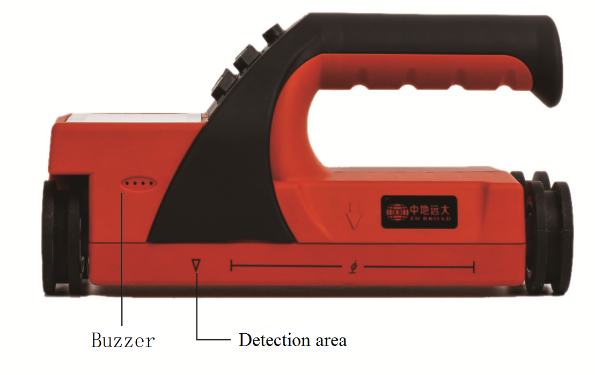

c)Right view

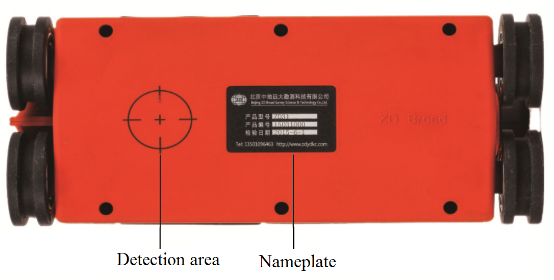

d)Bottom view

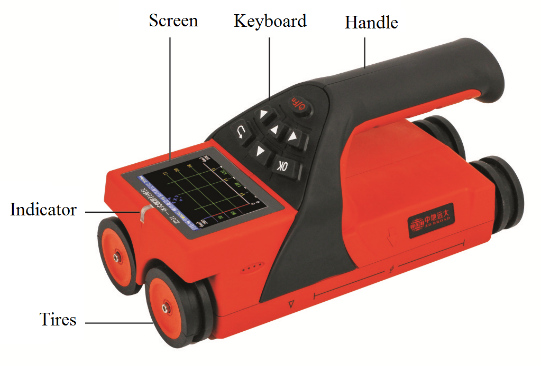

Schematic diagram of host appearance

1.1 Introduction

ZD410 Integrated Floor Thickness Gauge is mainly used for non-destructive testing of thickness measurement of concrete structures or other non-ferromagnetic media, for example: non-ferromagnetic thickness measurement of cast-in-situ floor, wall, beam, column, wood and ceramic; The unique design of the receiving probe and the host is one, only need to test on the corresponding surface of the transmitting probe (floor, etc.) to measure the non-ferromagnetic thickness value.

1.2  Functions

1.2.1 Main Functions

1. Accurately measure the thickness of concrete, floors, shear walls, beams, columns, etc.

2. Storage, viewing and transmission of inspection data.

1.2.2 Special Functions

1Real-time display of measured values and automatic locking of true thickness;

2With compensation type thickness detection function, it can compensate the detection of steel bars in concrete, etc., and has higher measurement accuracy. (Limited to different models)

3Fast real-time positioning, real-time display of the transmitting probe position, and fast positioning through direction indication

4. Single-hand grip and operation design, easy operation and fast automatic search for the position of the transmitting probe;

5. Automatically store calibration values to achieve fast measurement and reduce the troublesome procedures of each calibration work before detection。

1.2.3 Main Features

1. 2.8-inch high-resolution color LCD screen (320 × 240 pixels), clearly visible inspection data no matter indoor or outdoor;

2. Integrated design of host and receiving probe, small size, light weight, easy to carry;

3. Using USB mode for data transmission and charging, you can quickly upload the stored data to the computer through the USB cable

4. Built-in large capacity lithium battery, low design power consumption;

5. Data management, data storage, viewing, deletion and other functions, can store more than 200,000 measurement points;

6. Standard telescopic rod adopts professional and unique double 90 degree universal joint, which can be adjusted within 360 °

7. Adopt four-wheel positioning method, the outer wheel is equipped with high-strength wear-resistant tires, which is easy to protect the wear of the instrument;

8. Optional professionally designed standard calibration test block。

1.3  Technical sheet

Table 1.1 Technical sheet

Items

Values

Thickness range

mm

20450

Screen

320×240

Measurement mode

Thickness detection,

Power supply

Built in high capacity lithium battery

Working hours

≥16h

Launch probe Working hours

≥26h

Communication

USB interface

Storage

200K Measuring point of steel bar

Operation

Silicone keypad

Host

Size((mm

219×92×106

WeightKg

0.7

Launch probe

Sizemm

?100×110

WeightKg

0.5



Telescopic rod

Sizemm

?28×4701.5m

WeightKg

0.4



  Error range

Range (mm)

Error rangemm

20200

±1mm

201-400

±2mm

401-600

±3mm

601-1000

≥±8mm










Table 1.2 Error range of different thickness

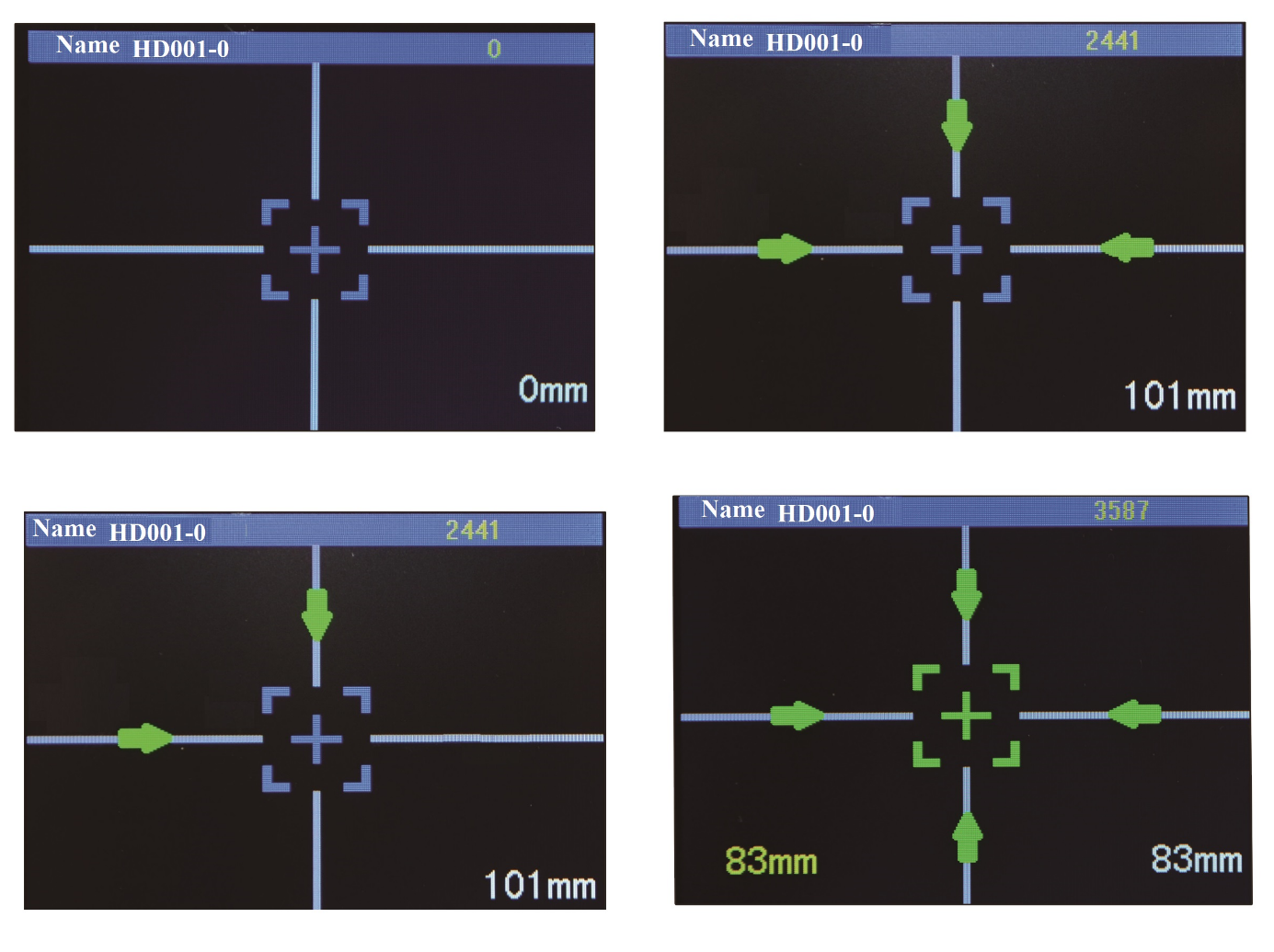

 1.4 Measurement interface


1.5 Standard Configuration

No.

Name

Unit

Quantity

Remarks

1

Product Host

piece

1

/

2

Launch The Probe

piece

1

/

3

Walkie Talkie

piece

1

/

4

Telescopicrod

piece

1

Converter head

5

Charger

piece

1

/

6

USB Cable

piece

1

/

7

User Manual

piece

1

/

8

Producer Certificate

piece

1

/

9

Warranty Card

piece

1

/

10

Packing List

piece

1

/

11

Software CD

piece

1

/

12

Product Suites/Box

piece

1

/

13

crayon

piece

1

/

14

Standard Block

piece

1

Optional accessories
